Tensile strength

  Previous topic Next topic

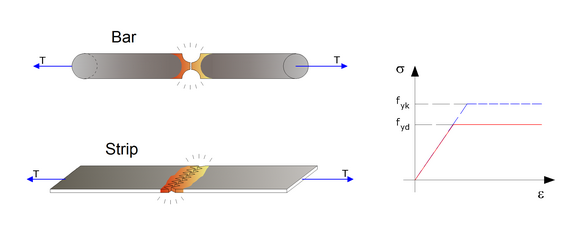

Once the tensile forces in the reinforcements are known Ti, the armatures section b x t is determined. For metallic bars or strips with allowable stress equal with:



we have:



RotturaBS_EN

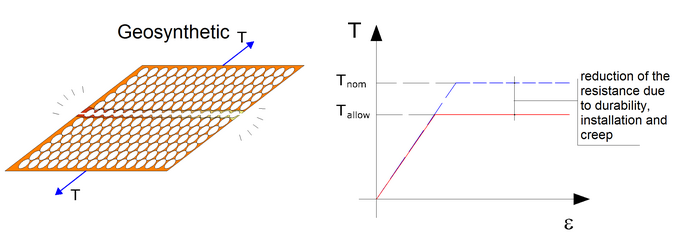

For geotextiles a problem that occurs in that the fabrics resistance varies from one producer to another. From available ones select one where:



(Strip length b ) x (resistance per width unit) Ti



rottura geosintetico_EN



The allowable resistance used for sizing is:



The unique safety factor (FS) is the combination of: Fs joint, Fs chemical, Fs biological, Fs environmental damages



FS = FSjoint × FSchemical × FSbiological × FSenvironmental damages
