In the section "Loads" can be defined the loads that act on the reinforced earth and are identified by the following parameters:



Description: insert a name to the surcharge - il will be shown in the "Perform analysis" table from where the user can choose if the surcharge is taken into consideration or not in the current combination.

Input point X and Y: regarding the local system in which reinforced earth was defined.

Lengths Lx, Ly: are defining the load width.

Q: surcharge

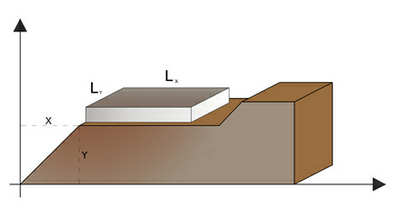

Definition of geometric parameters of the load
