Anchorage stringcourses

Are part of this archive data related to the anchorage stringcourses. The software allows managing an archive for the anchorage stringcourses.

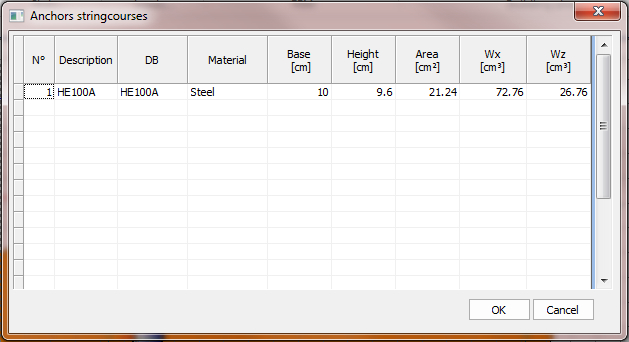

In the window presented above the user can insert new type of stringcourses, alter or delete the existing ones. Data that define an anchorage stringcourse:

•	Nr. - order number - delete this to delete the entry

•	Description - identifying name

•	DB - type of stringcourse to associate from the Database

•	Material - constitution material (to choose between concrete and steel)

•	Base - width of the beam expressed (Order of magnitude = 10/15 cm)

•	Height - height of the beam expressed (Order of magnitude = 10/15 cm)

•	Area - section area of the stringcourse

•	Wx - section modulus of the section about the reference axis x

•	Wy - section modulus of the section about the reference axis y

N.B. The last set of data, namely all those that characterize the geometry of the section (Base, Height, Area, Wx, Wy) are calculated automatically by the program, once you have chosen the stringcourse from the Database. However, you can customize these variables by simply modifying the respective fields of the table.
