It is a software for the calculation of the limit load of loose and rock soil. The software allows the calculation of bearing capacity factors. For each computation method it is possible to perform the analysis under drained and undrained conditions.

The program also performs the calculation of the elastic settlements, oedometric settlements, Schmertmann, Burland and Burbidge, it performs the verification to liquefaction using the method of Seed and Idris (1971).

Optional modules

3D Settlements: Computation of settlements with three-dimensional interference of the load areas. Load area can take circular or rectangular shape. Computation of differential settlements. Section line graphic. Settlements diagram. Settlements isobars. Load area import from DXF files.

Road Embankments: Analysis and computation of road and railway embankments.

Data Input

Multi level undo-redo function;

Numeric input in tabular form;

Graphic input;

Automatic conversion of the units of measurement.

Supported calculation standards

Eurocode 7/8

British Codes BS8004

Other important features

Unlimited number of layers;

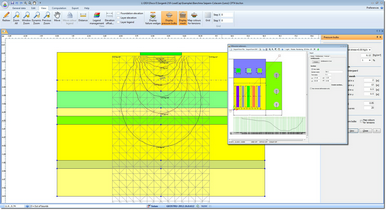

Display of pressure bulb and failure wedges 2D, 3D;

Interpretation of penetrometric soil tests according to: Meyerhof, Sanglerat and Peck Hanson Thorburn Meyerhof;

Includes a texture library;

Computation of settlements in any point of the foundation (internal or external).

Earthquake

Pseudo-static analysis:

Shikhiev & Jakovlev, Paolucci Pecker, Richards.


Computation method

Limit load for loose soils:

Hansen, Vesic, Terzaghi, Meyerhof, EC-8

Limit load for rocks:

Terzaghi, Zienkiewicz

Settlements:

Oedometric, Schemertmann, elastic, Burland Burbidge, differential

Stress and tension computation:

Boussinesq,Westergaard;

Liquefaction verification:

Seed Idris

For the latest novelties see the Change Log
